OVERVIEW

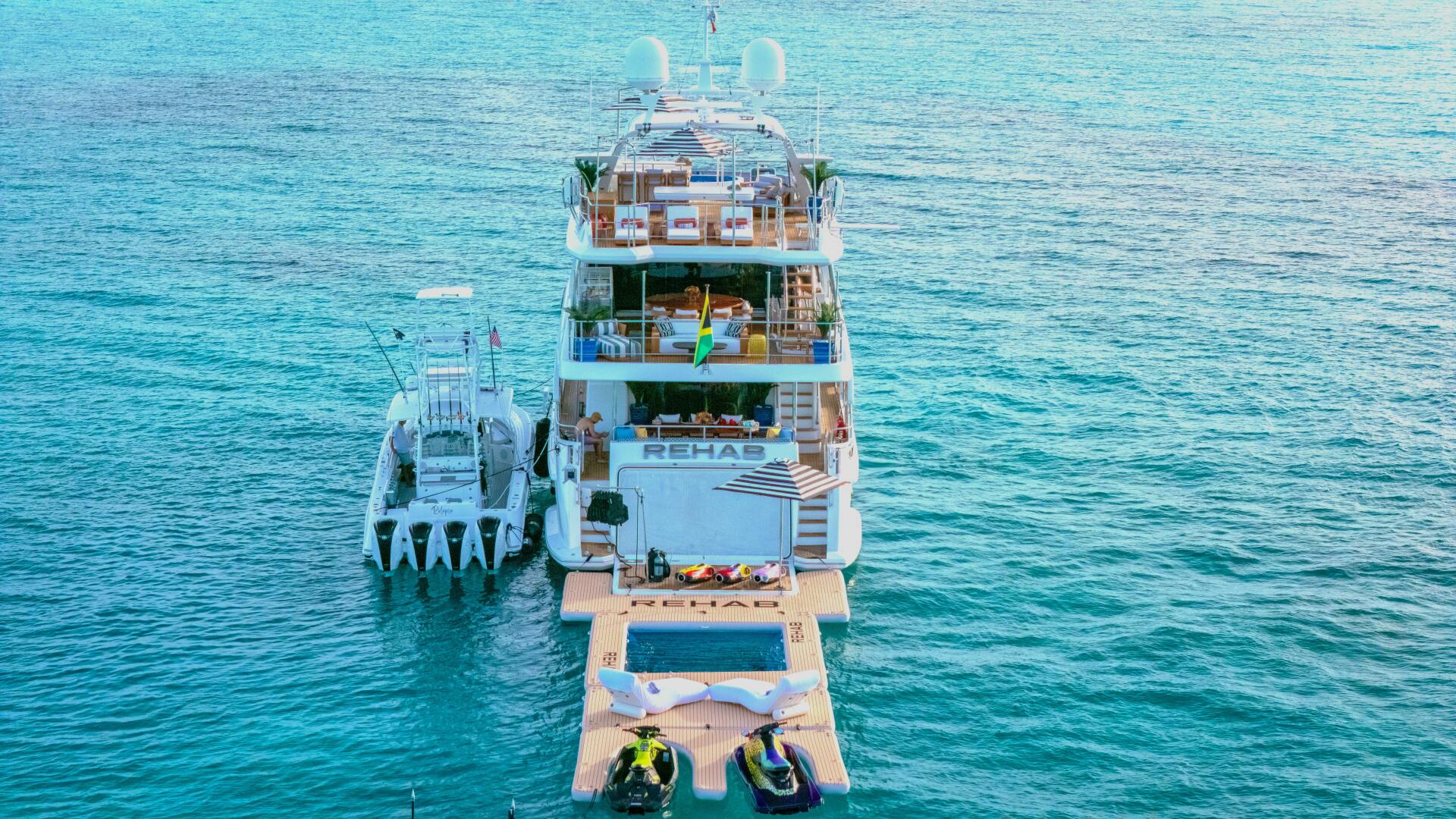

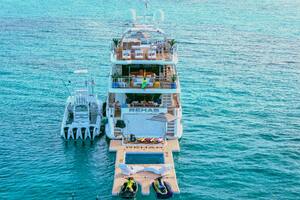

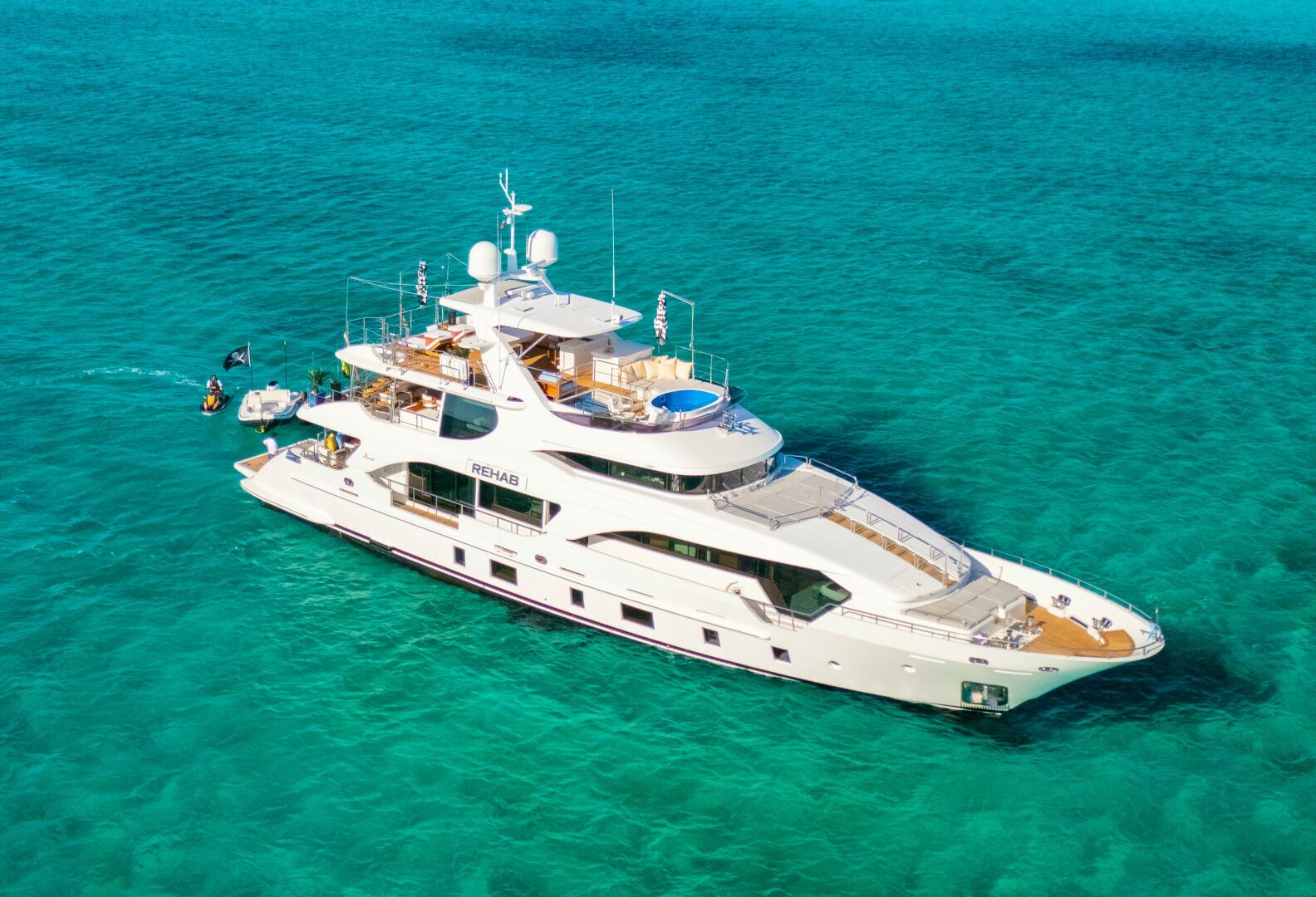

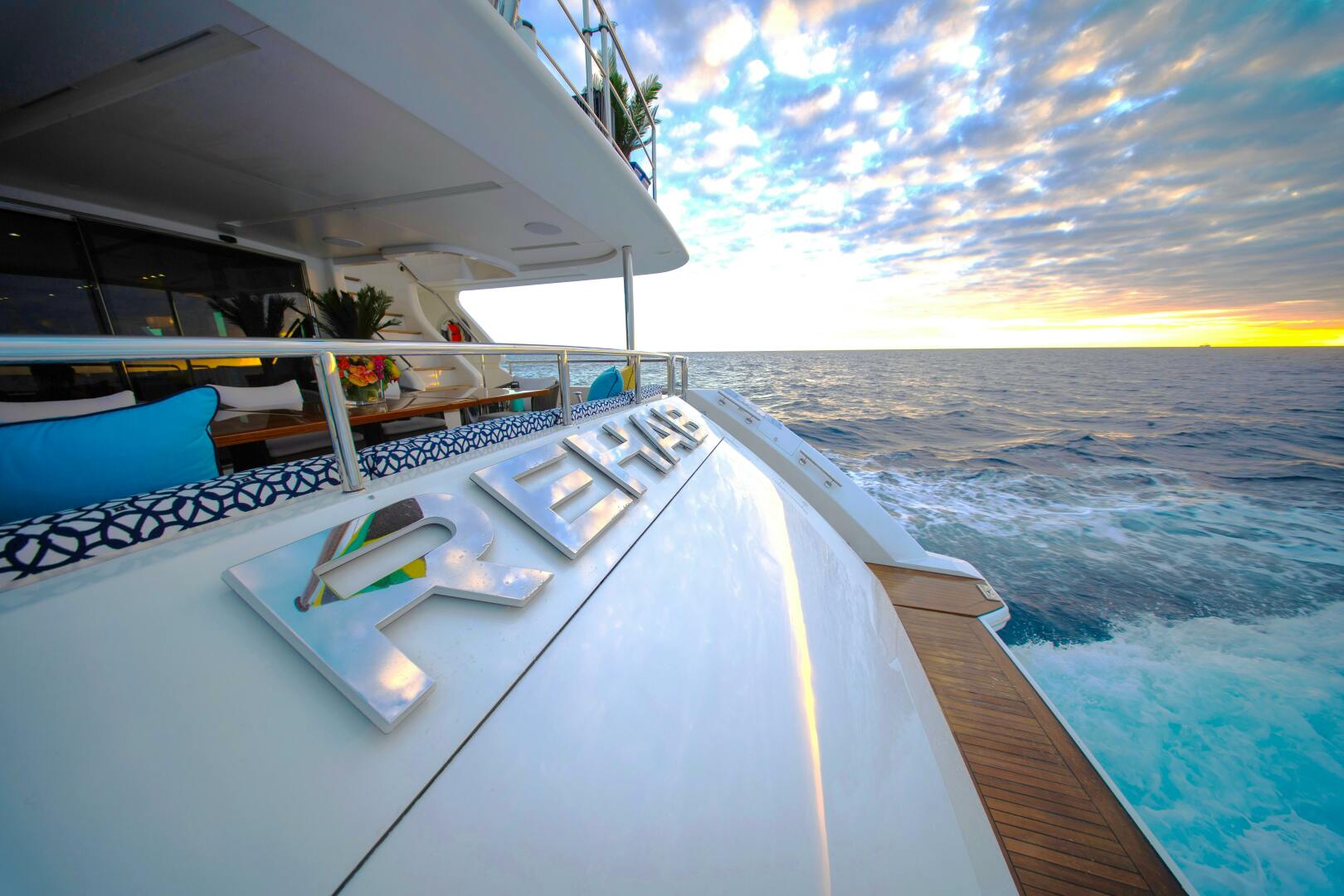

REHAB is a tri-deck motor yacht with all the features found in a much larger yacht, packed into a smaller, punchier, package. Built to RINA, REHAB has been maintained to outstanding standards. The current owner has spent approximately $2mm, updating her interior, updating her A/V system, and redesigning her sun deck. She has also undergone numerous mechanical and electrical updates. A full list of refit work is being organized and will be available upon request shortly.
For those interested in chartering, REHAB is an outstanding platform for charter and has achieved significant success under previous owners.
ACCOMMODATIONS

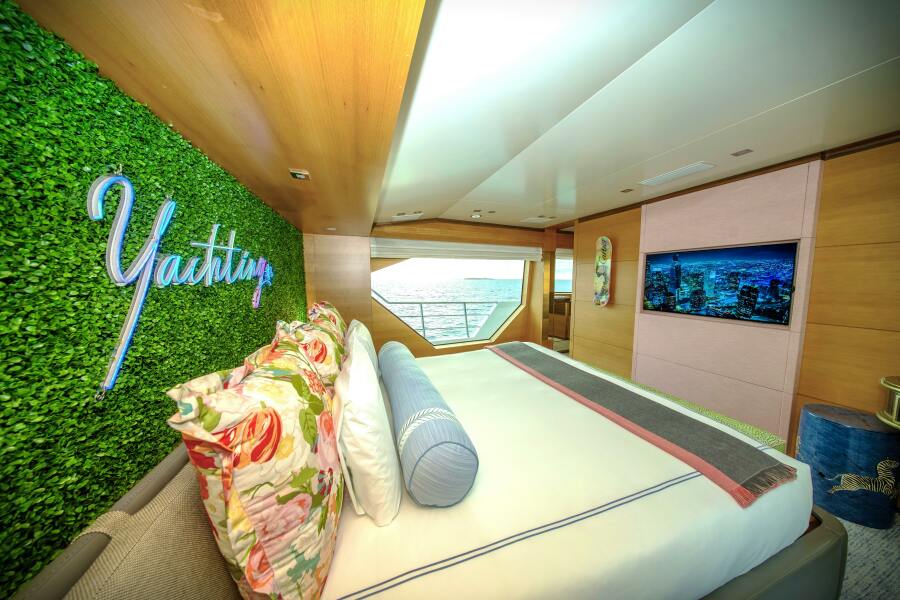

REHAB accommodates 10 guests in 5 beautifully appointed and updated staterooms, including an on-deck master stateroom. She sleeps up to 6 crew in 3 cabins on the lower deck.

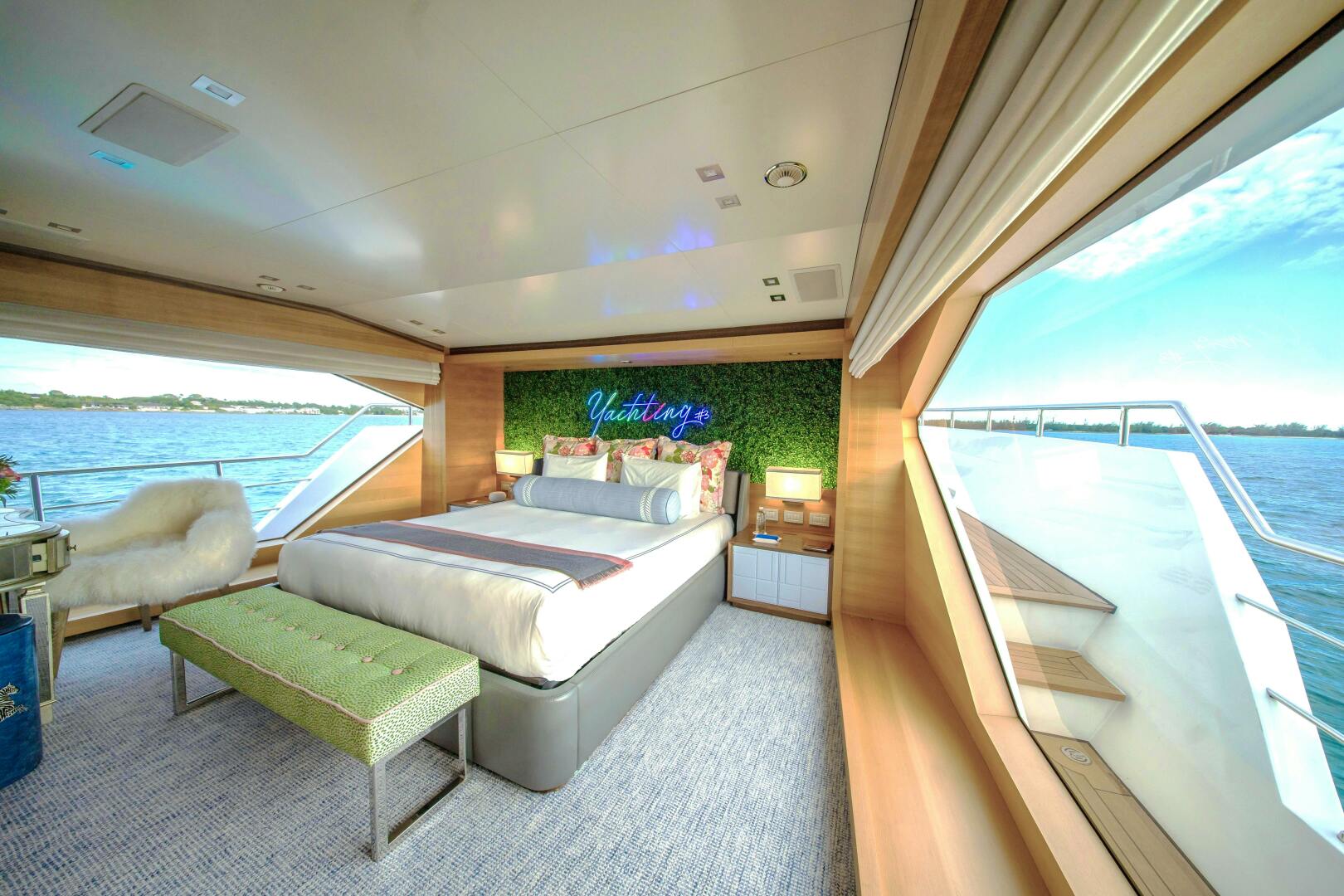

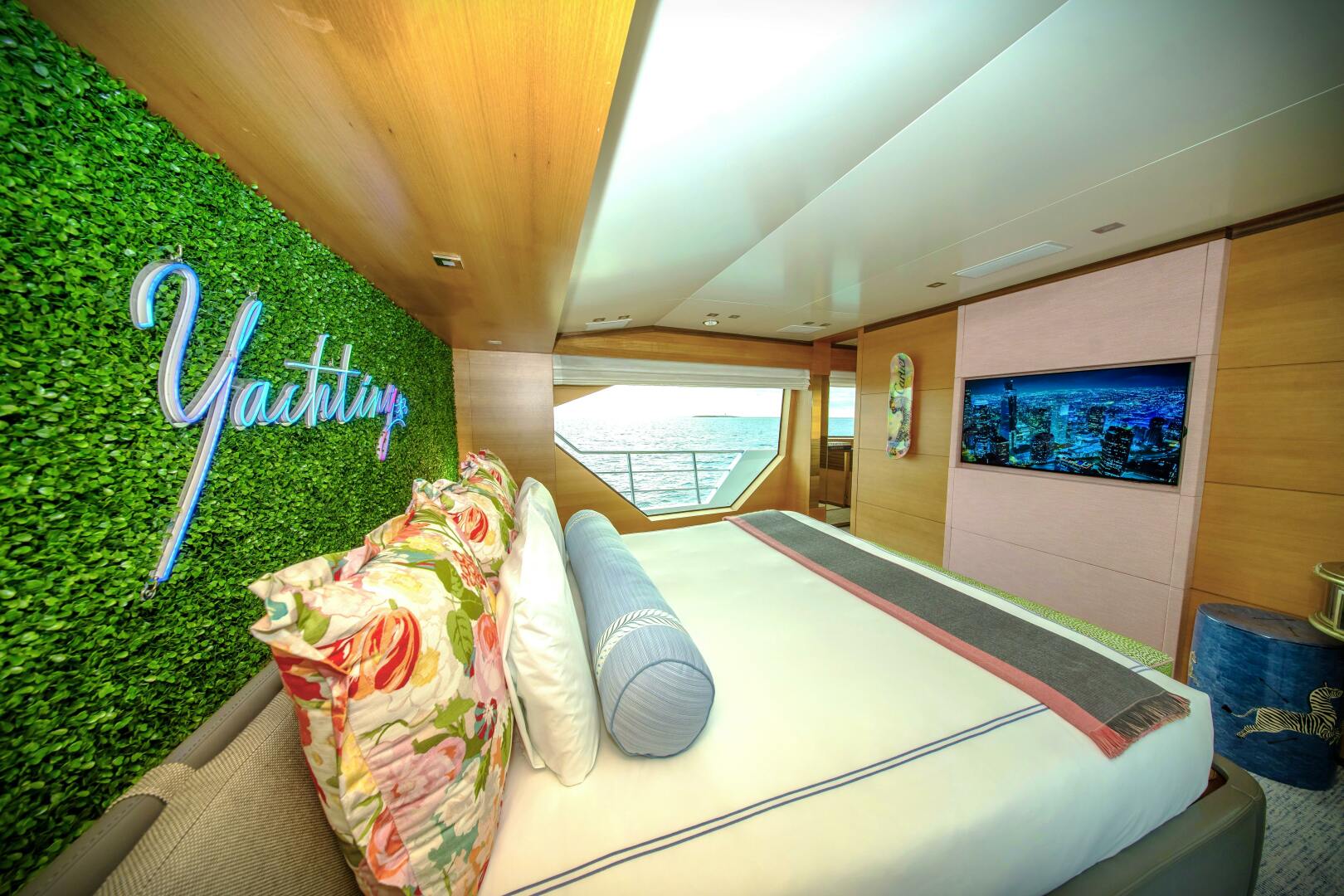

Owner's Stateroom

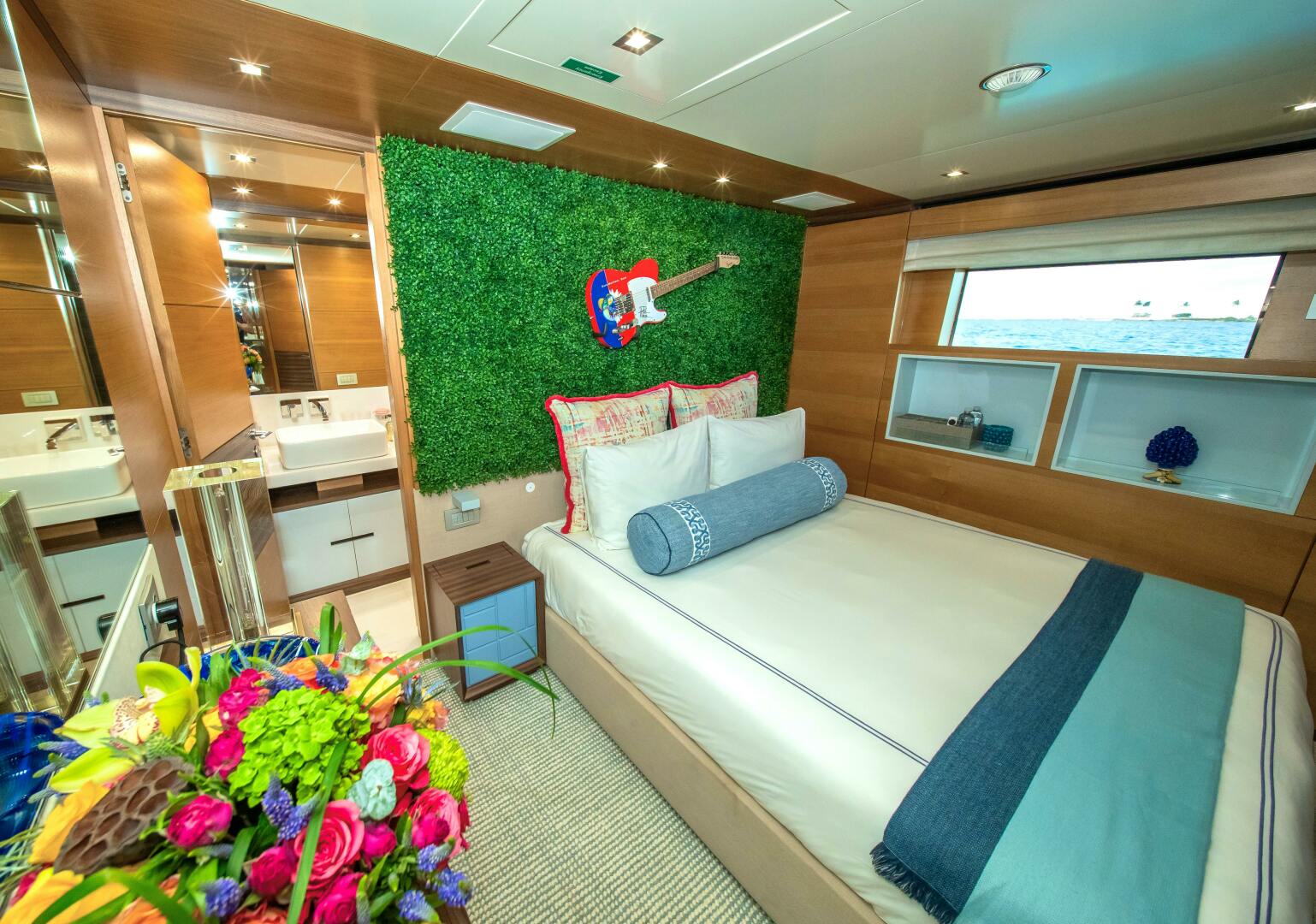

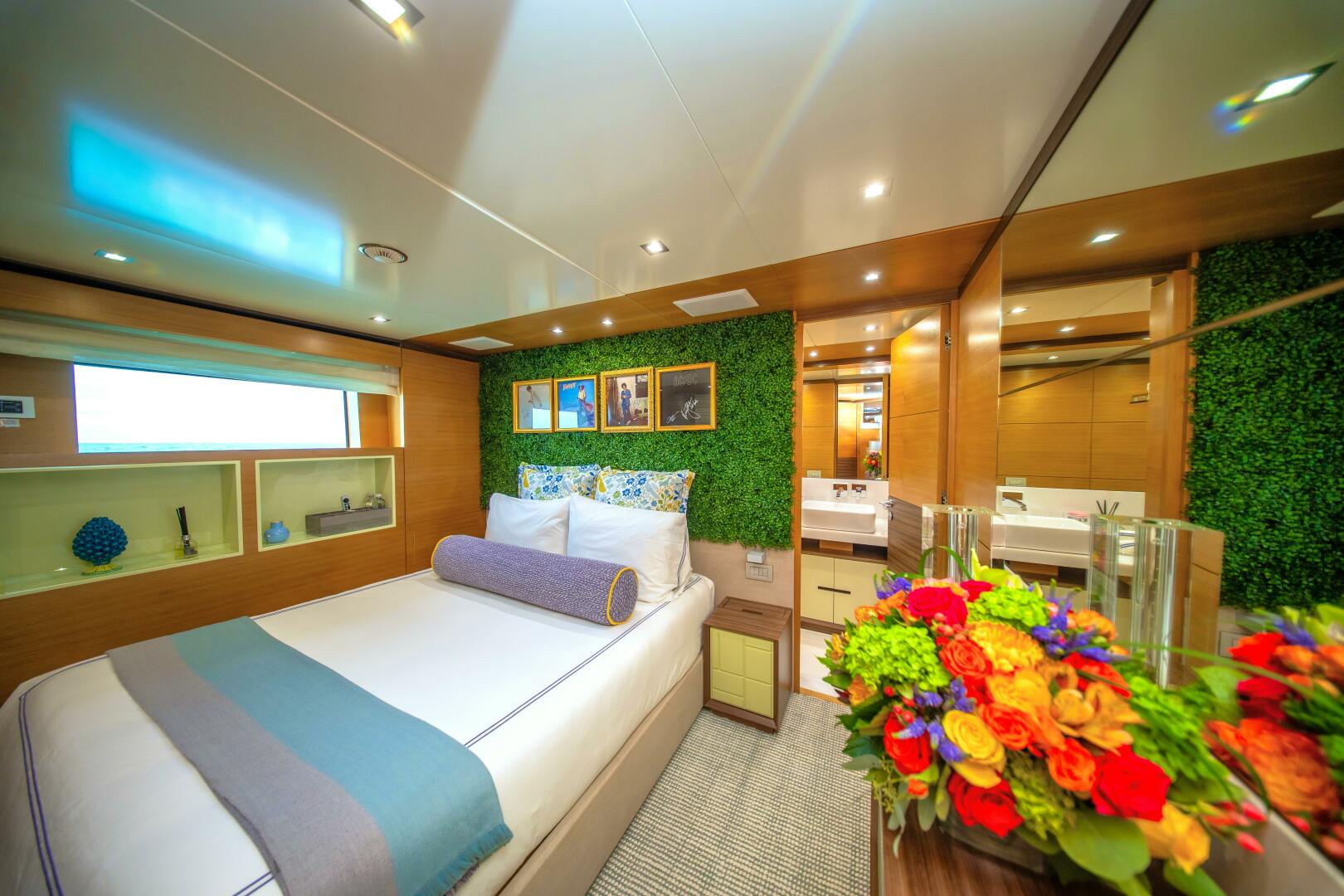

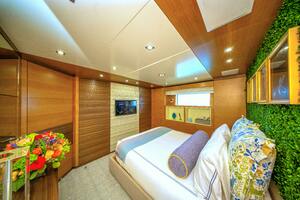

Guest Staterooms
(2) x queens, lower deck aft, mirrors of each other
(2) x twins, lower deck forward, mirrors of each other
Crew
DIMENSIONS
General
Length Overall: 108' (33 meters)
Beam: 23'10" (7.26 meters)
Draft: 6'6" (1.98 meters)
Gross Tonnage: 210 GRT
Registered Net Tons: 63
Displacement: 170 short tons
Capacities
Fuel Capacity: 5,442 US Gallons (20,600 liters)
(3) x Fuel Tanks: Port:2,413 US Gallons (9,134 liters)
Stbd: 2,413 US Gallons (9,134 liters)
Day Tank: 616 US Gallons (2,331 liters)
Freshwater Capacity: 682 US Gallons (2,581 liters)
Black/Gray Water: 803 US Gallons (3,039 liters)
Lube Oil: 73 US Gallons (276 liters)
Dirty Oil: 73 US Gallons (276 liters)
Approximate Speeds, RPM's, Fuel Consumptions; favorable sea conditions
Speed RPM Fuel Consumption
12 knots 1700 17 Gallons/hour/engine
15 knots 2000
MACHINERY
Main Engines
Engine Type: (2) x MAN V8 D268LE423; maximum rated RPM 2300; 1000 hp each
Engine Hours (1.2025):
Port: 4,205; M1 service @ 4,122 hours
Starboard: 4,205; M1 service @ 4,122 hours
Gearboxes: Reintjes WAF 344
Shafts: 95mm stainless steel
Propellors: (2) x 5-blade Nibral 1250mm x 1185 mm
Generators & Electricity
Generators: (2) x Kohler 50 kW, inside sound shields
Generator Hours (1.2025):
Port: 9,862
Starboard: 8,998
RPM/Hertz: 1500 @ 50 Hz
Voltage:
230 or 400 V, 1-phase
400 V, 3-phase
Shore Power:
Batteries:
Air-Conditioning
Type: Frigomar, chilled loop
Other Machinery
Watermaker: Idromar MC3J reverse osmosis; 66 US gallons/hour (250 liters/hour)
Water Heaters: (2) x Gianneschi, 53 US Gallons
Stabilizers: CMC Marine SE80/ECO- electric
(2) x fins with winglets, 40" x 70"
Bow Thruster: CMC Marine, 24 V, electric
Steering System: BCS, electro/hydraulic with twin steering pumps
Fuel Filtration: (2) x Racor on each engine
(2) x Racor on each generator
Sewage System: Type II- Tecnicomar- Ecomar
Jet-vac system for toilets
SAFETY, SECURITY, AND FIRE EQUIPMENT
Safety Equipment
Life Rafts: (2) x Survitec, 8-person
Life Rings: (4) x Type IV
Life Jackets: Yes
EPIRBS:` (1) x ACR Global Fix; (2) x ACR RESQLINK
Ship's Horn: (3) x Kahlenberg, air horns
Searchlights: Jabsco with pan/tilt functions
Medical Kit: Yes
Security
CCTV/Camera System: (6) x CCTV Cameras
Security Safe: Technomax, in all guest cabins
Fire System
Type: FM200, engine room
Fire/Bilge Pump: Gianneschi 400 V, 3ph. with manifold; interchangeable
Fire/Smoke Detectors: Throughout
Fire Extinguishers: Throughout
COMMUNICATION & NAVIGATION
Communication Equipment
VHF Radio: Sailor 6215 VHF DSC
SSB Radio: Sailor 6301 MF/HF
Monitoring System: Benetti OEM
Navigation Equipment
Radar: Furuno
GPS: Furuno Navnet 3D
AIS: Furuno FA-50
Automatic Pilot: Navis - AP 3000
Depth Sounder: Furuno
Compass: Furuno Sat Compass
Northrop Gruman Magnetic
Monitors: (2) x Seatronx
Navsystem: Timezero
ENTERTAINMENT SYSTEMS
A/V updated in 2024 to Sonos system and Apple TV's throughout vessel.
(1) x Samsung 42" (Master Stateroom)
(2) x LG TV (Port and Stbd Aft Guest Staterooms)
(2) x JVC TV (Port and Stbd Fwd Guest Staterooms)
(1) x Samsung Smart TV (Main Salon)
(1) x Samsung Smart TV (Sky Lounge)
(1) x Samsung TV (Crew Lounge)
(1) x Sunbrite TV (Bridge Deck Aft, on mounted bracket)
(1) x Sunbrite TV (Sun Deck, on lift)
GALLEY & LAUNDRY EQUIPMENT
Galley Equipment
Cooking Equipment:
(1) x Miele, 4-burner, induction cooktop
(2) x Miele microwave (galley and crew mess)
(1) x Bosch combination oven/microwave
Electric exhaust above cooktop
Refrigeration & Freezer:
(1) x Miele with freezer drawer
(1) x GE fridge/freezer
(1) x Miele freezer, stand-up
(1) x Miele, fridge/freezer stacked (crew mess)
(3) x Isotherm, undercounter (sky lounge, bridge deck aft, sun deck)
(1) x industrial freezer (garage)
Icemaker:
(1) x GE (inside freezer)
(3) x Frigomar- (sun deck, bridge deck aft, sky lounge)
(1) x industrial ice maker (garage)
Wine Refrigerator: (1) x Dunavox (sky lounge)
Dishwasher: (1) x Miele
Laundry Equipment
Washing Machines: (2) x Miele
Dryers: (2) x Miele
DECK EQUIPMENT
Anchors: (2) x 100kg, galvanized, Poole style

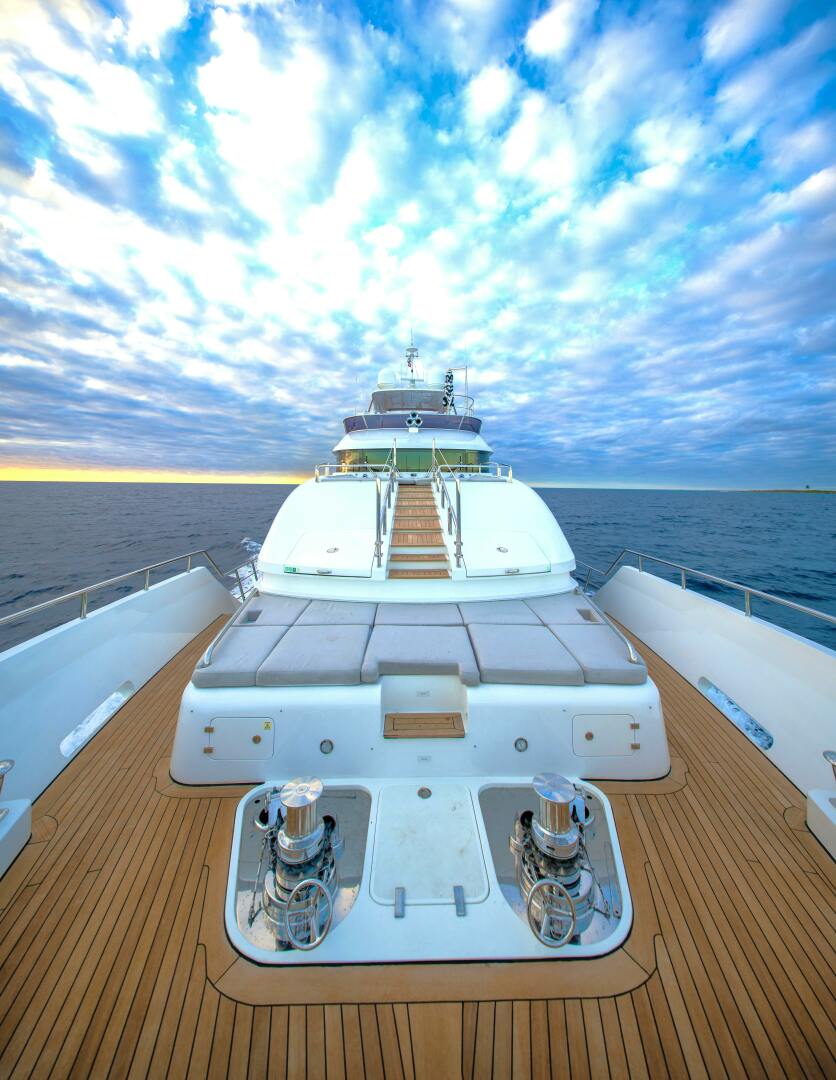

Anchor Windlass: (2) x vertical, electric
Anchor Chain: (2) x 300', galvanized (apprx. length)
Deck Winches: (2) x electric, aft deck
Gangway: Marquipt, aluminum
Passarelle: Bensenzoni, hydraulic
Dinghy davit: Electric winch only
Garage door: Bensenzoni, hydraulic
Swim platform Integrated into garage door

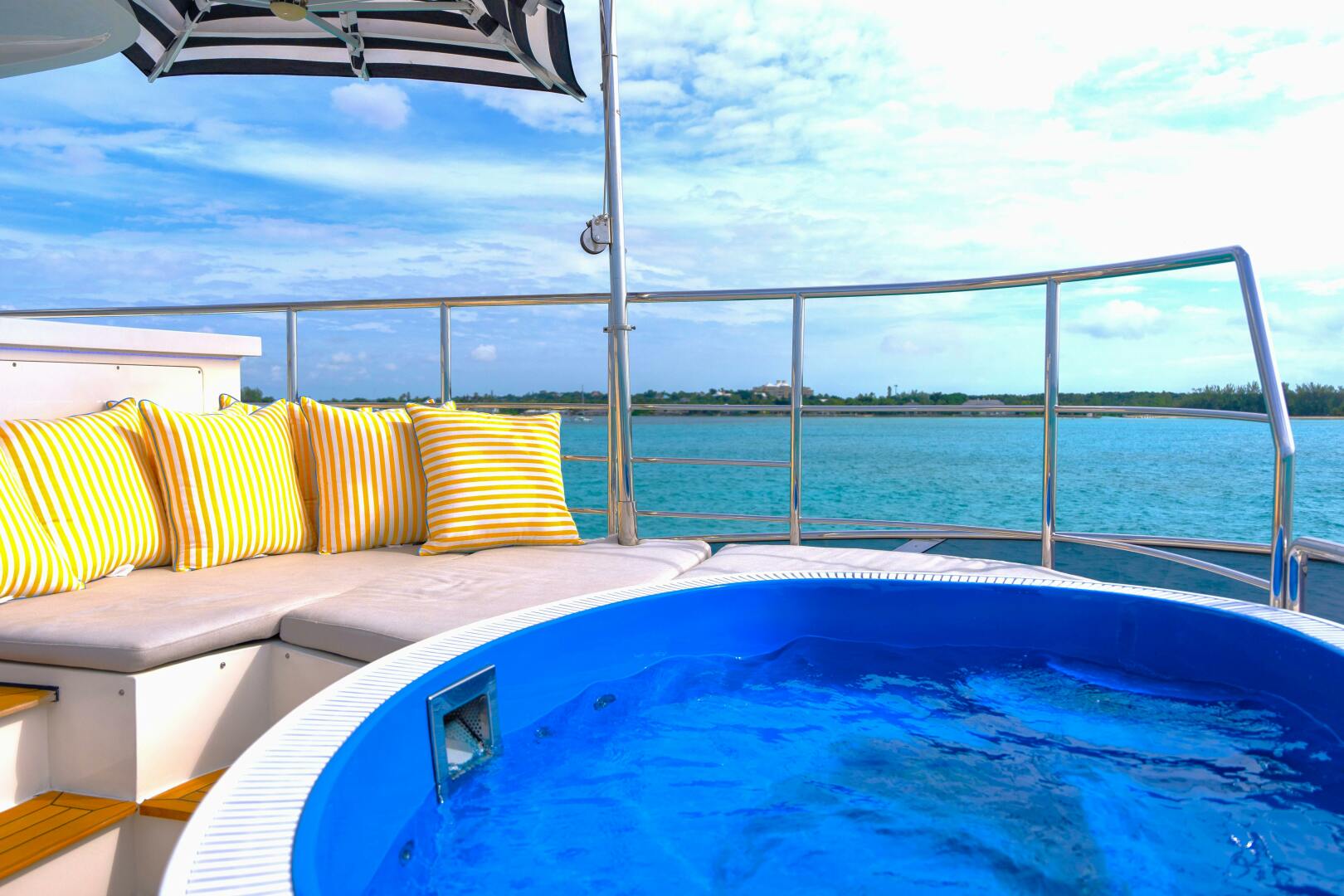

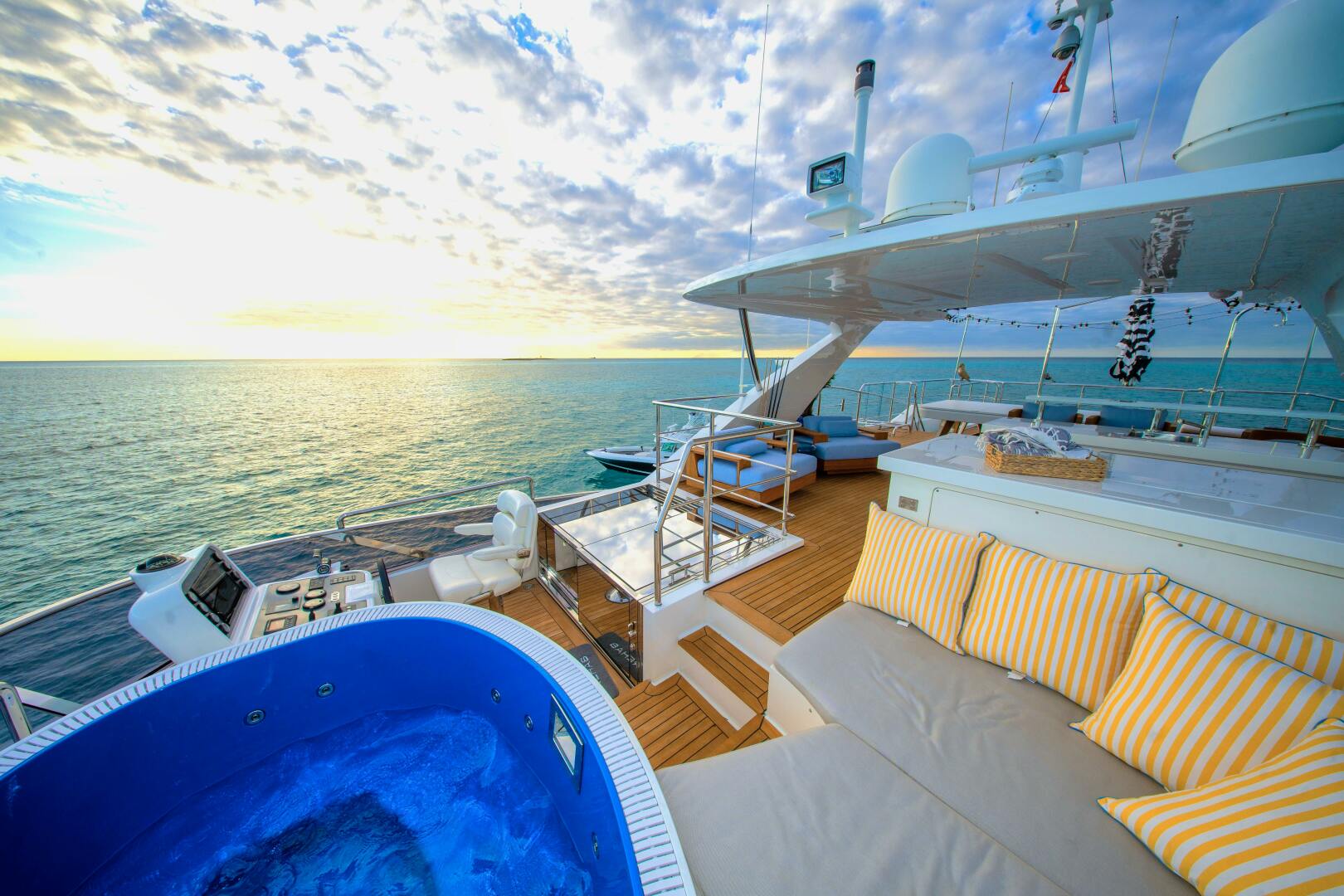

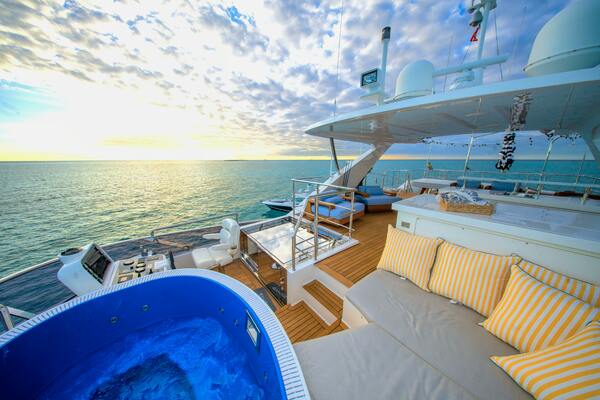

Jacuzzi: Yes, 6-person

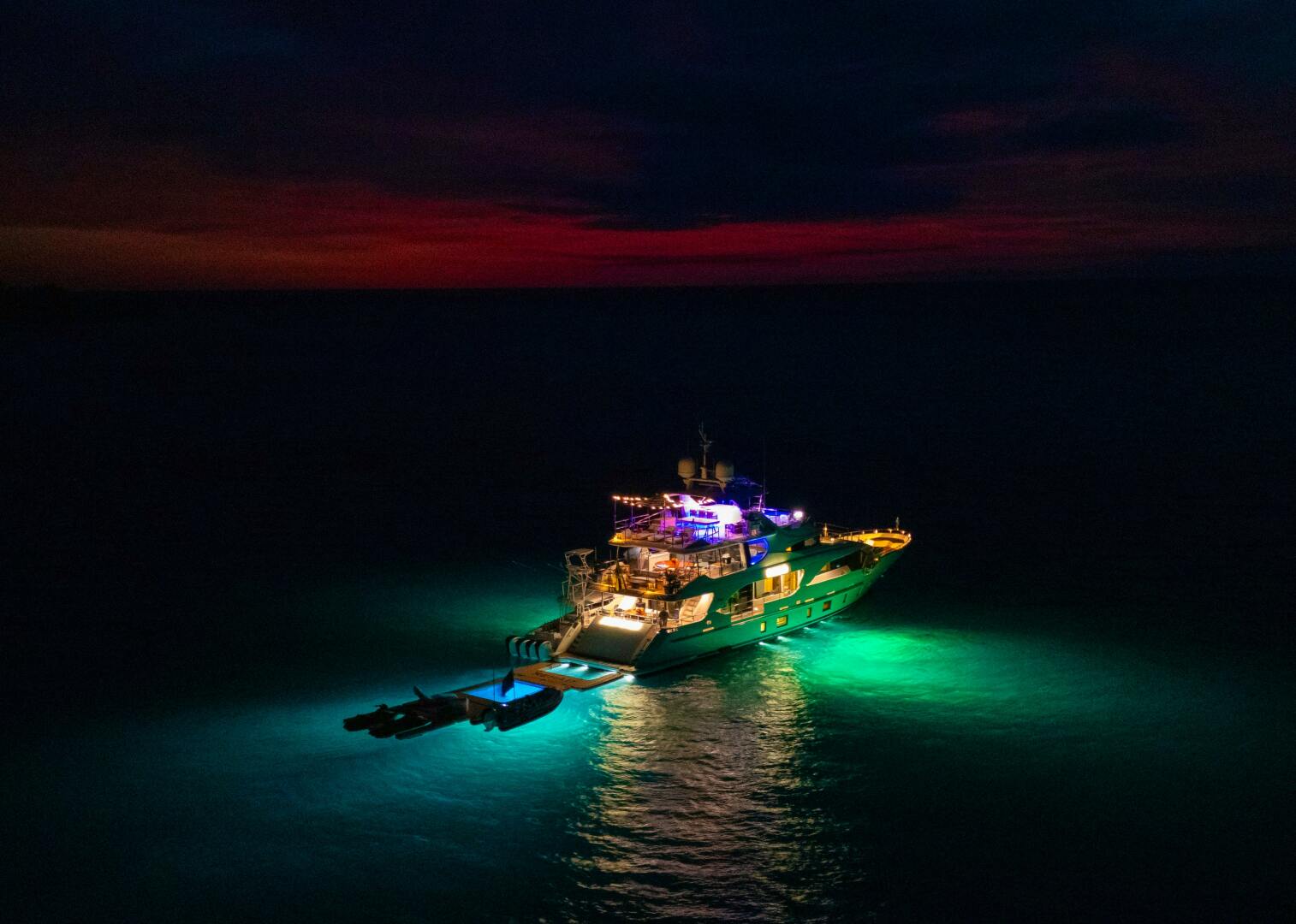

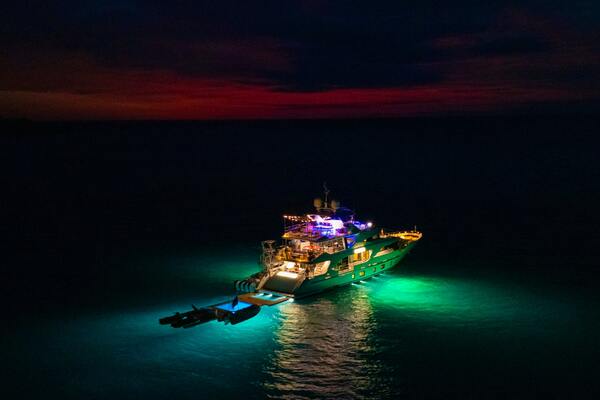

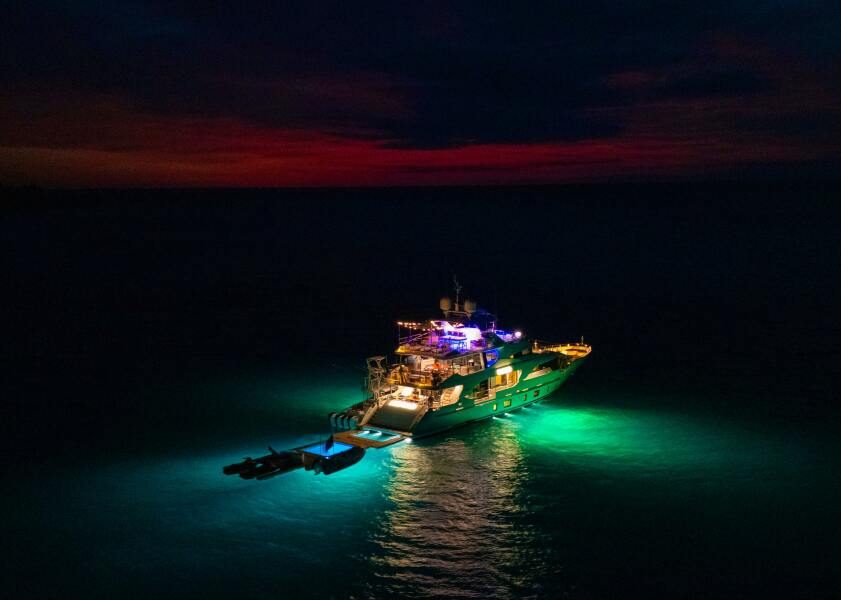

Underwater lights: (12) x LED
Sun shades: Stainless steel poles with canvas (bridge deck aft)
EXCLUSIONS
Owner's personal items as well as crew personal items.
A detailed list of exclusions will be provided upon full execution of a Purchase & Sale Agreement.
